DREDGERS

DREDGERS

A dredger is a specialized vessel designed for removing sediments and materials from the seabed, riverbed, or lakebed. It is essential for deepening waterways, expanding ports, shaping shorelines, or preparing underwater terrain for marine infrastructure projects.

Depending on the working environment and type of soil, various dredging technologies are applied — including suction, cutter, jetting, or combined systems. The vessel is equipped with mechanical or hydraulic systems that efficiently extract and transport material to designated locations such as barges, shore discharge sites, or reclamation zones.

At Maritecs, we provide engineering support in the design, optimization, and modernization of dredgers. Our focus is on structural durability, operational efficiency, and long-term reliability, tailored to meet the demands of modern dredging operations.

DREDGER SERIES

A dredger is a specialized vessel designed for removing sediments and materials from the seabed, riverbed, or lakebed. It is essential for deepening waterways, expanding ports, shaping shorelines, or preparing underwater terrain for marine infrastructure projects.

Depending on the working environment and type of soil, various dredging technologies are applied — including suction, cutter, jetting, or combined systems. The vessel is equipped with mechanical or hydraulic systems that efficiently extract and transport material to designated locations such as barges, shore discharge sites, or reclamation zones.

At Maritecs, we provide engineering support in the design, optimization, and modernization of dredgers. Our focus is on structural durability, operational efficiency, and long-term reliability, tailored to meet the demands of modern dredging operations.

DREDGER SERIES

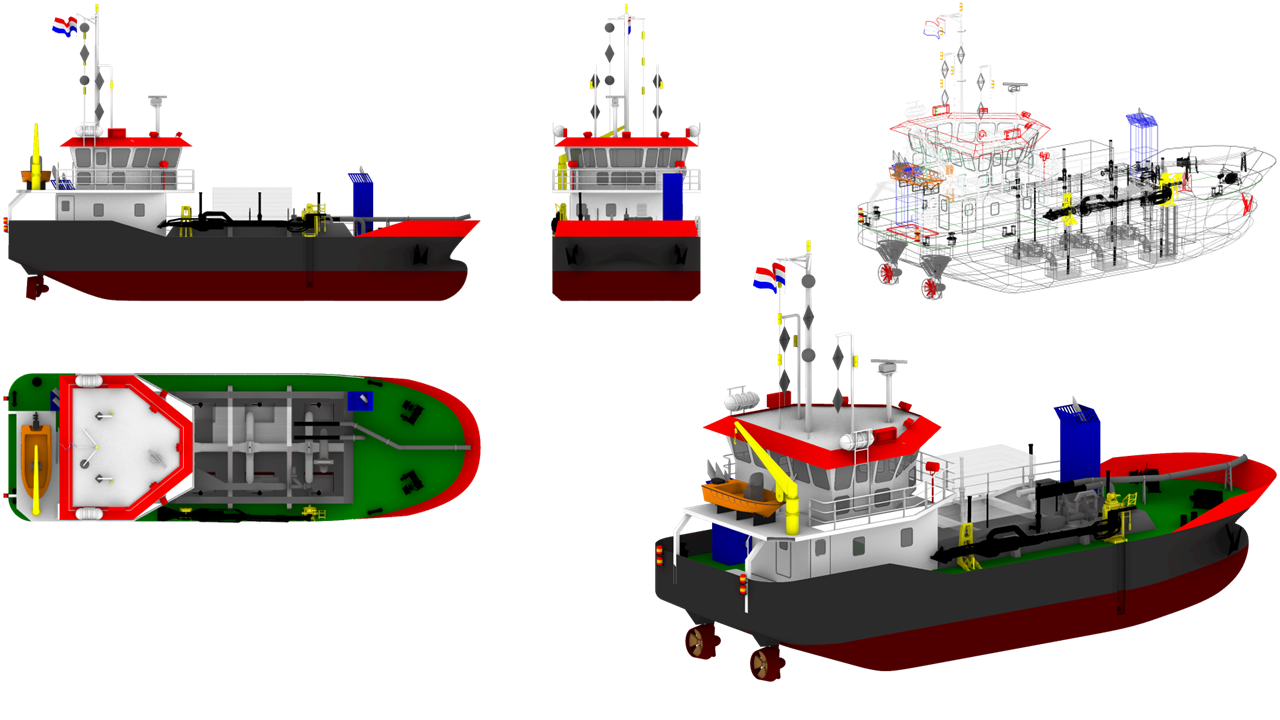

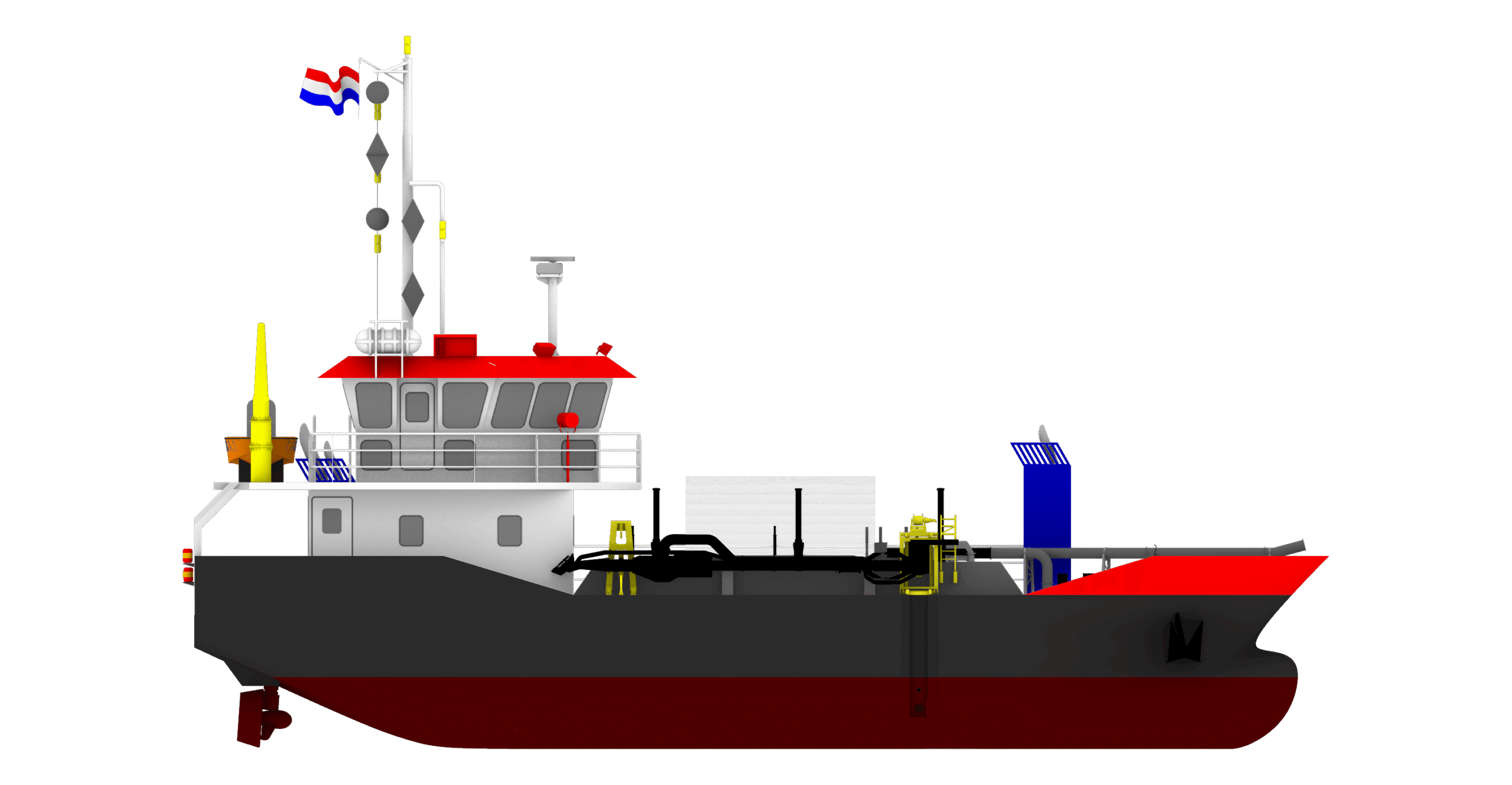

No. 1 [120 m³ TSHD]

Principal Particulars

TRAILING SUCTION HOPPER DREDGER
Length overall: 23.95 m
Length between perpendiculars: 21.60
Depth: 3.25 m
Moulded breadth: 8.50 m
Hopper capacity: 120 m³
Speed: 9 knots
Dredging mark DR-50: 2.30 m
Loading capacity DR-50: 250 tons

Concept View
Opis obrazka

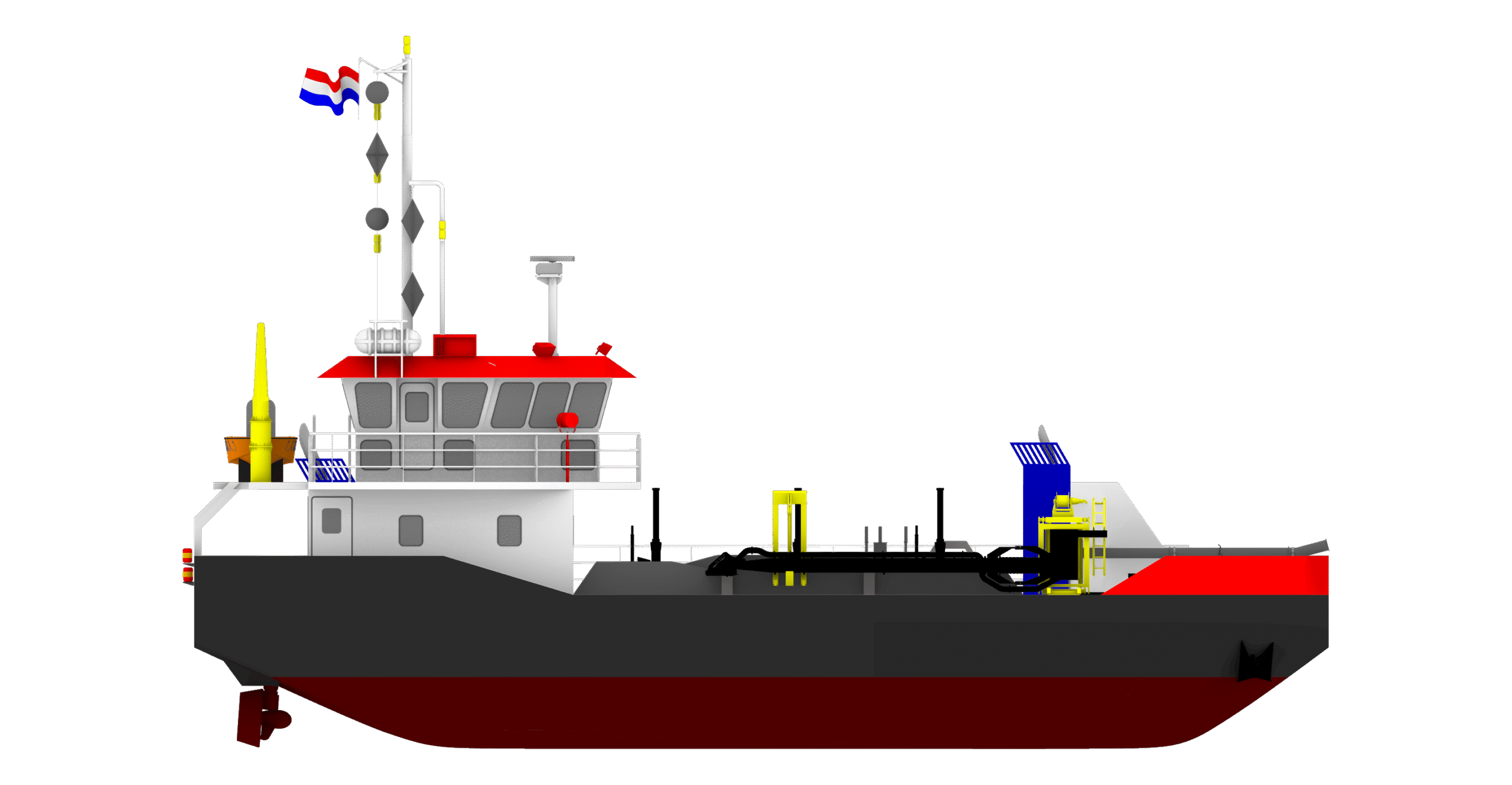

No. 2 [180 m³ TSHD]

Principal Particulars

TRAILING SUCTION HOPPER DREDGER
Length overall: 23.95 m
Length between perpendiculars: 21.60
Depth: 3.25 m
Moulded breadth: 8.50 m
Hopper capacity: 180 m³
Speed: 9 knots
Dredging mark DR-50: 2.30 m
Loading capacity DR-50: 250 tons

Concept View
Opis obrazka

No. 3 [1100 m³ SHB]

Principal Particulars

SPLIT HOPPER BARGE
Length overall: 64.55 m
Length between perpendiculars: 62.00 m
Depth: 3.85 m
Moulded breadth: 13.45 m
Hopper capacity: 1100 m³
Speed: 8.5 knots
Dredging mark DR-50: 3.00 m
Loading capacity DR-50: 1520 tons

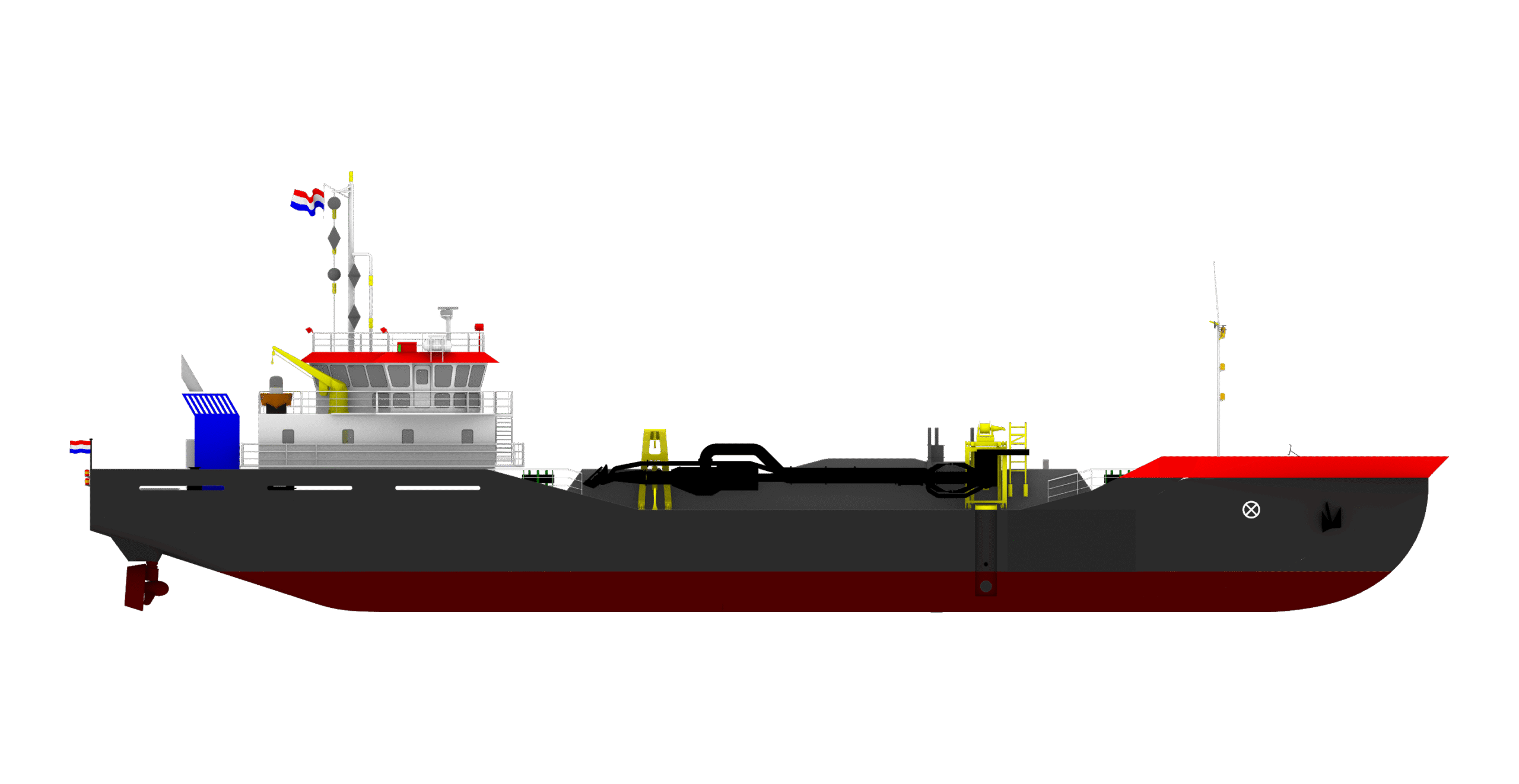

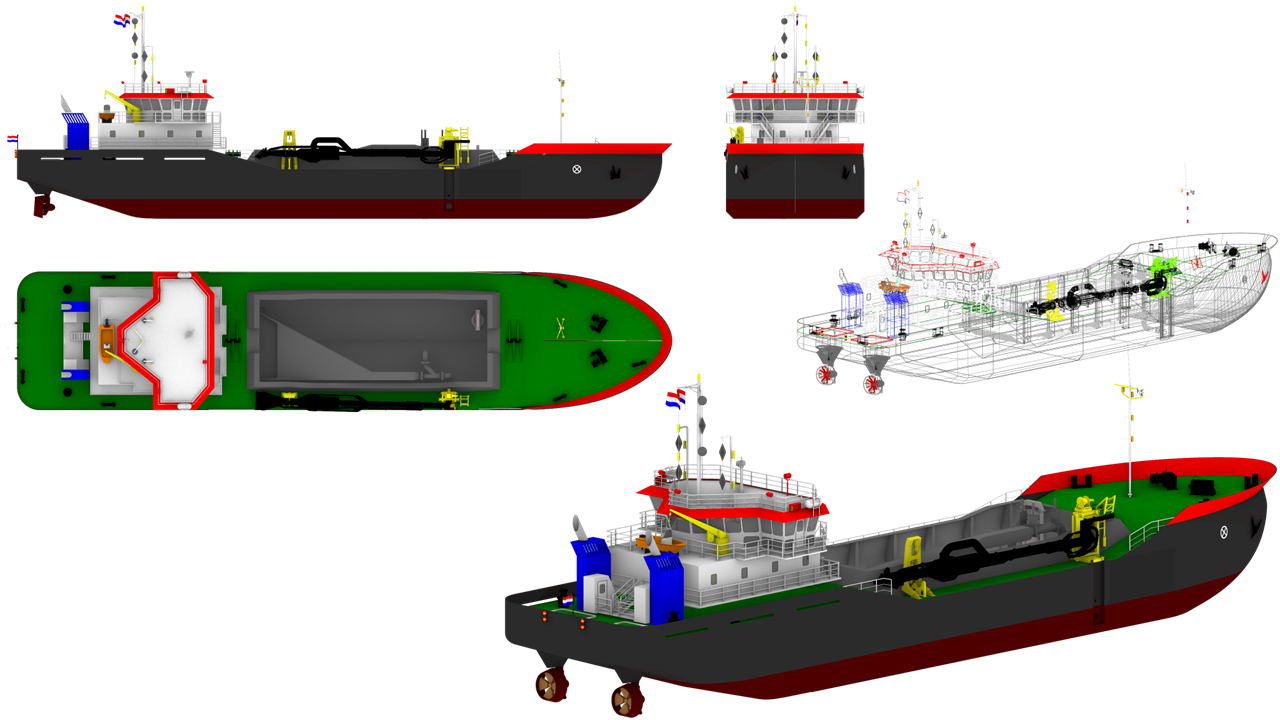

Concept View
Opis obrazka

No. 4 [1100 m³ SHB]

Principal Particulars

SPLIT HOPPER BARGE
Length overall: 64.55 m
Length between perpendiculars: 62.00 m
Depth: 3.85 m
Moulded breadth: 13.45 m
Hopper capacity: 1100 m³
Speed: 8.5 knots
Dredging mark DR-50: 3.00 m
Loading capacity DR-50: 1520 tons

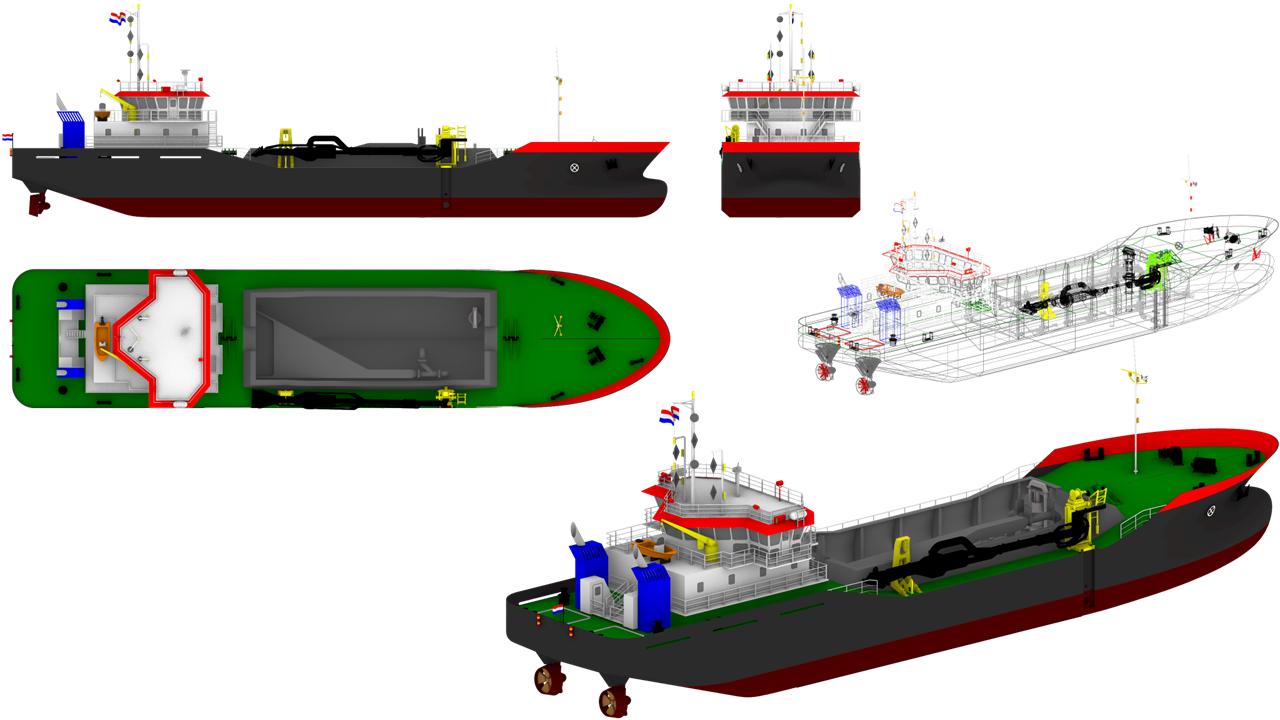

Concept View
Opis obrazka

No. 5 [2000 m³ SHB]

Principal Particulars

SPLIT HOPPER BARGE
Length overall: 81.20 m
Length between perpendiculars: 72.00 m
Depth: 5.00 m
Moulded breadth: 13.40 m
Hopper capacity: 2000 m³
Speed: 11.2 knots
Dredging mark DR-50: 3.80 m
Loading capacity DR-50: 2760 tons

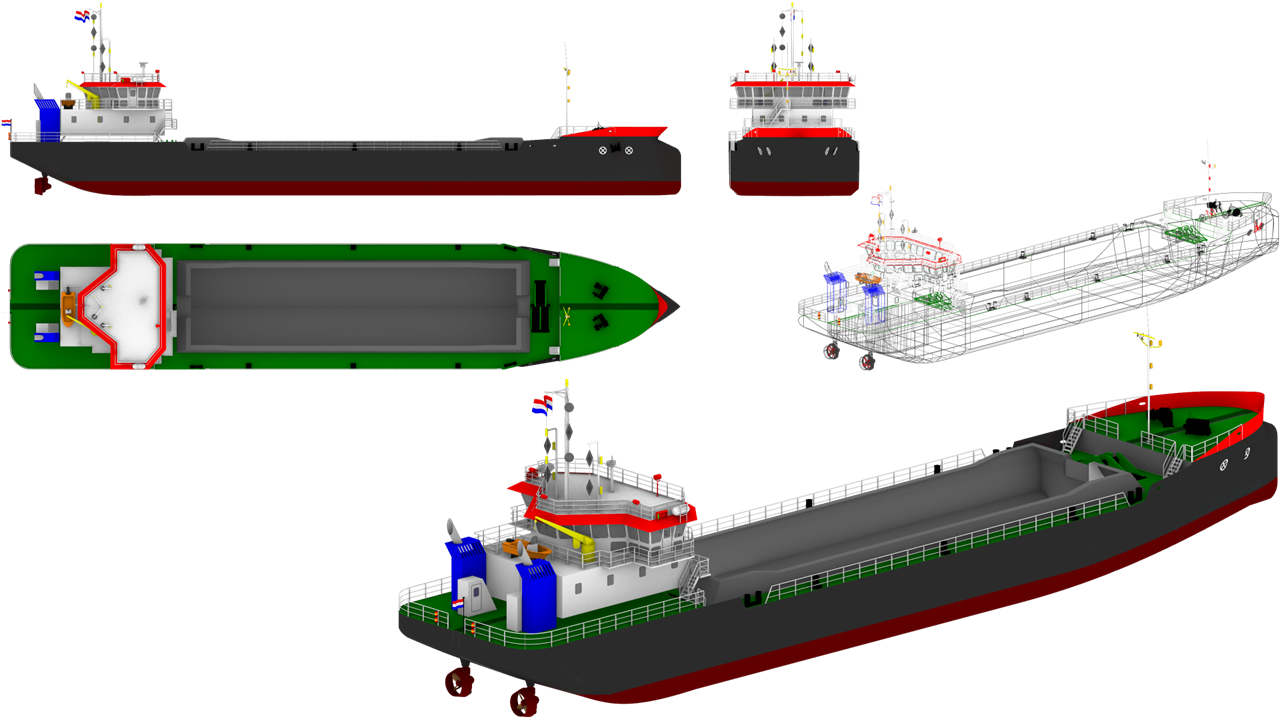

Concept View
Opis obrazka

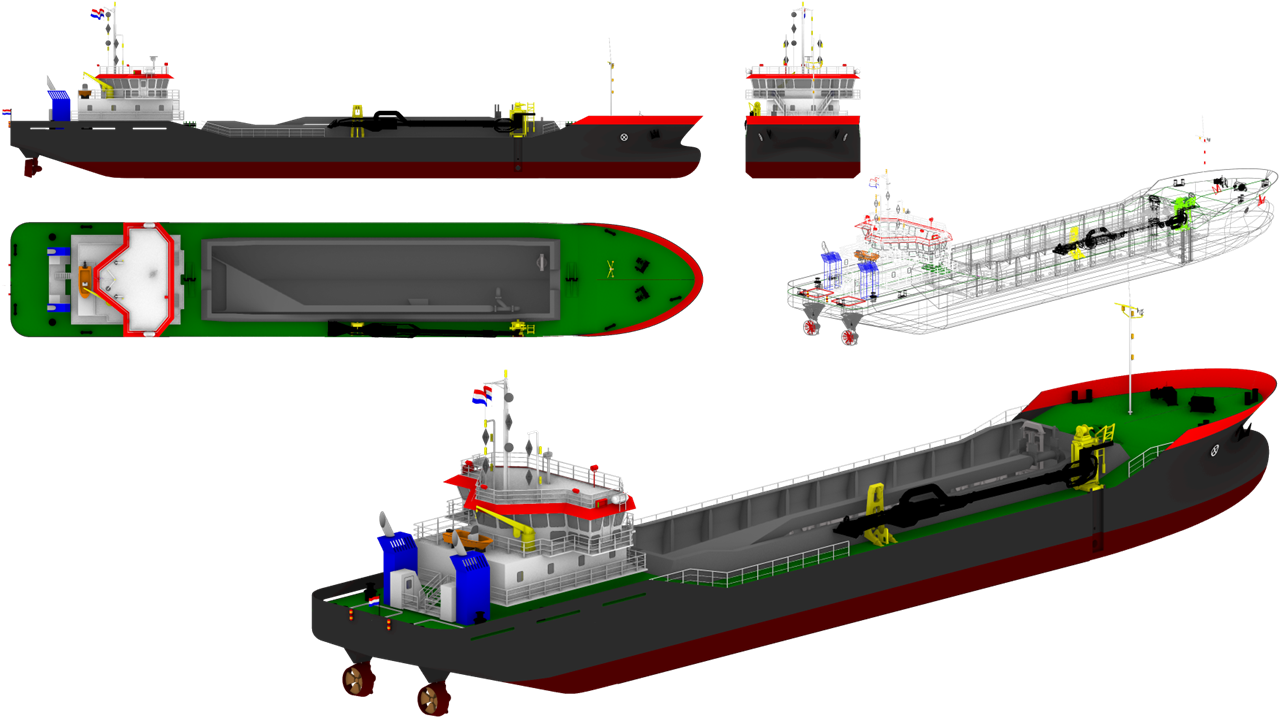

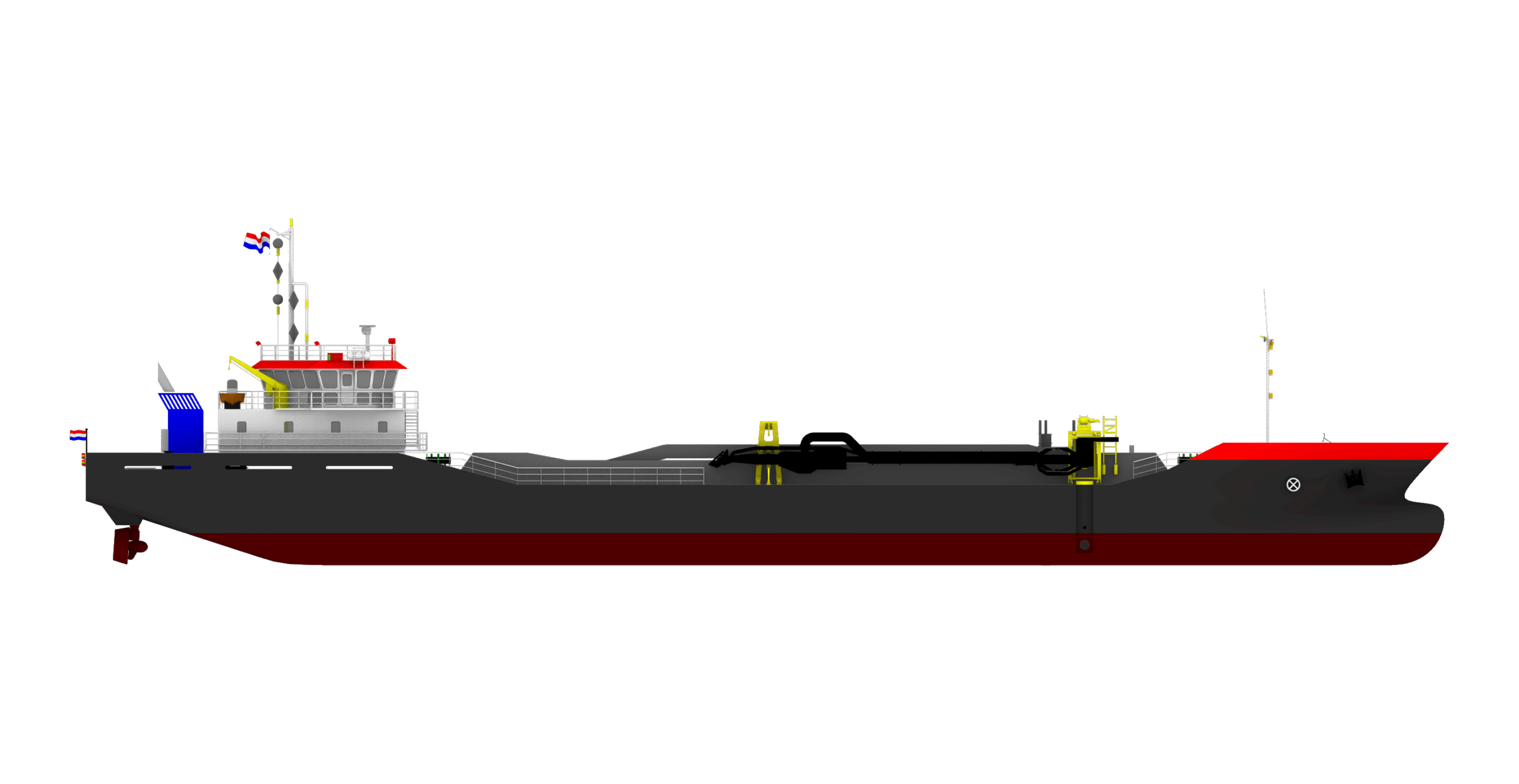

No. 6 [2000 m³ STSHD]

Principal Particulars

SPLIT TRAILING SUCTION HOPPER DREDGER
Length overall: 81.20 m
Length between perpendiculars: 72.00 m
Depth: 5.00 m
Moulded breadth: 13.40 m
Hopper capacity: 2000 m³
Speed: 11.2 knots
Dredging mark DR-50: 3.80 m
Loading capacity DR-50: 2760 tons

Concept View
Opis obrazka

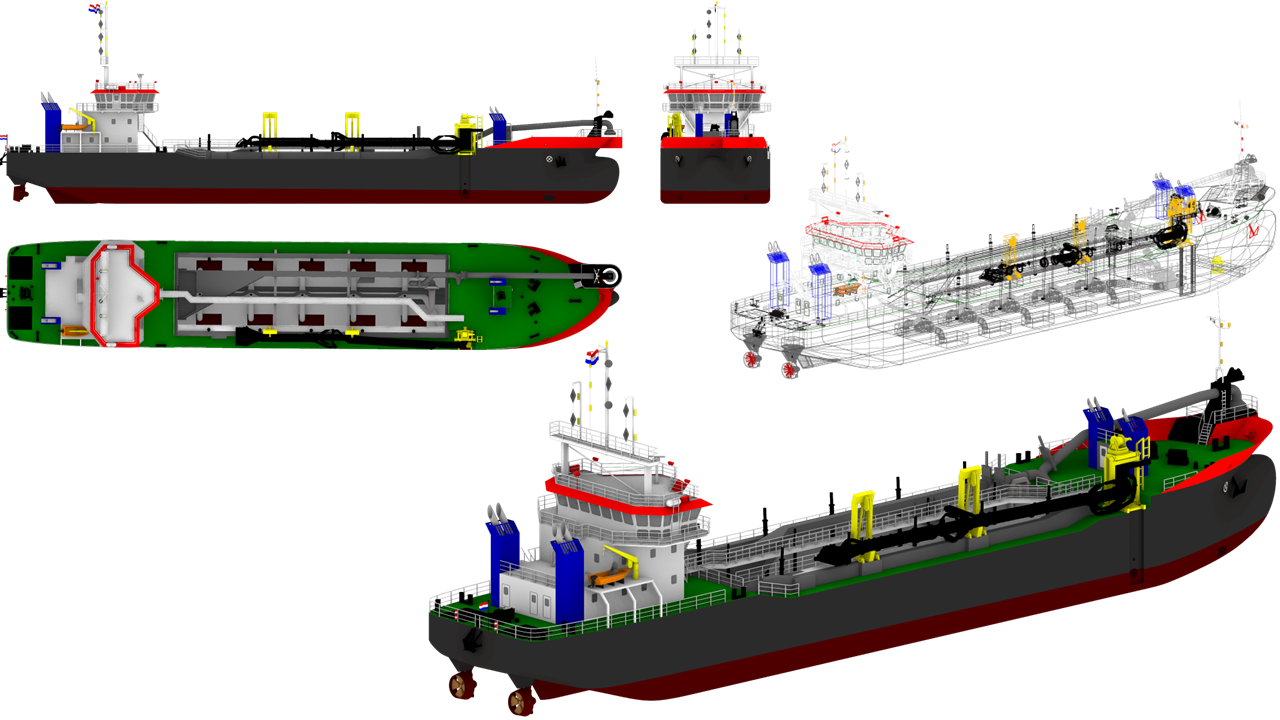

No. 7 [2500 m³ TSHD]

Principal Particulars

TRAILING SUCTION HOPPER DREDGER
Length overall: 83.50 m
Length between perpendiculars: 76.30 m
Depth: 6.10 m
Moulded breadth: 14.6 m
Hopper capacity: 2500 m³
Speed: 12.1 knots
Dredging mark DR-50: 4.50 m
Loading capacity DR-50: 3450 tons

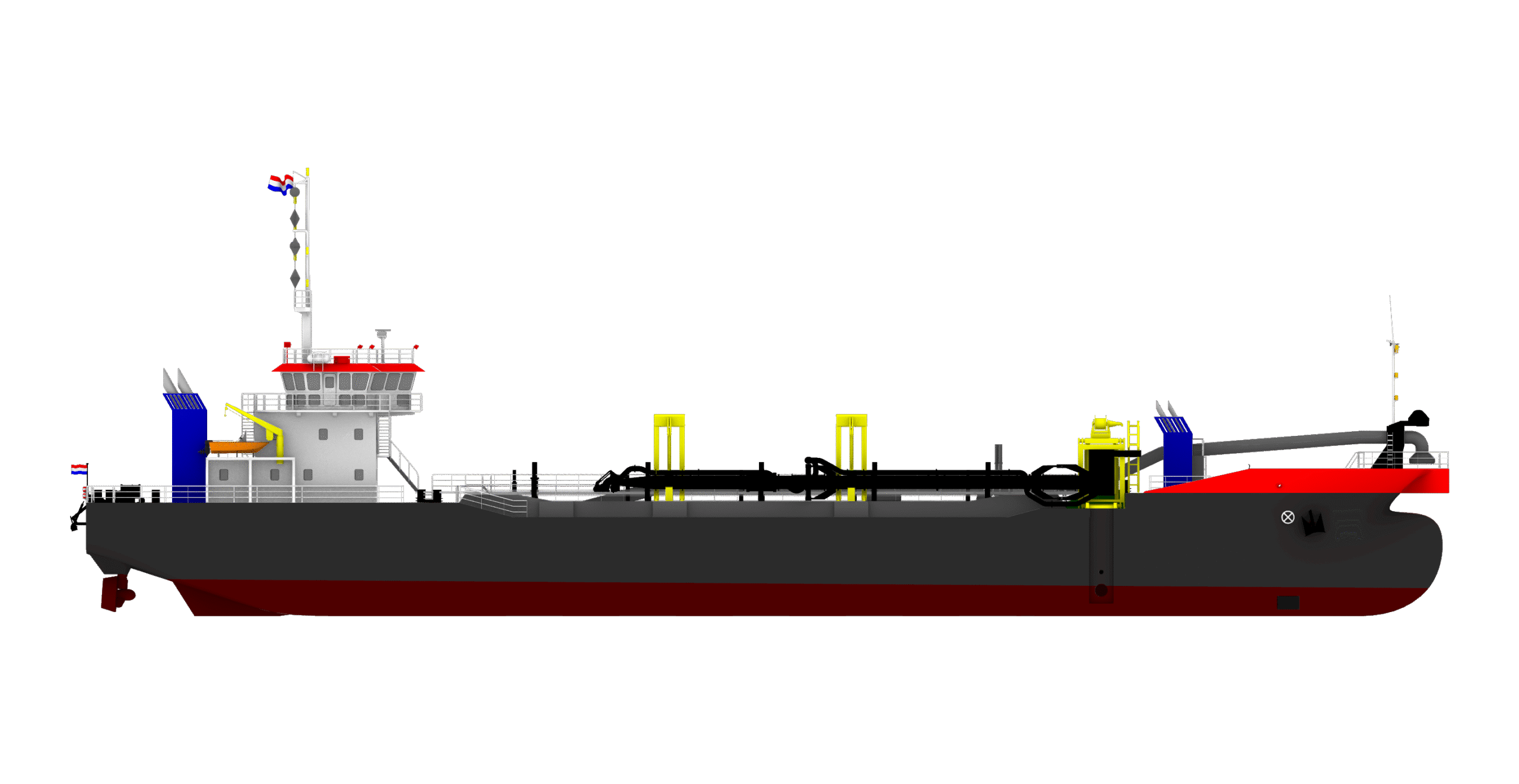

Concept View
Opis obrazka

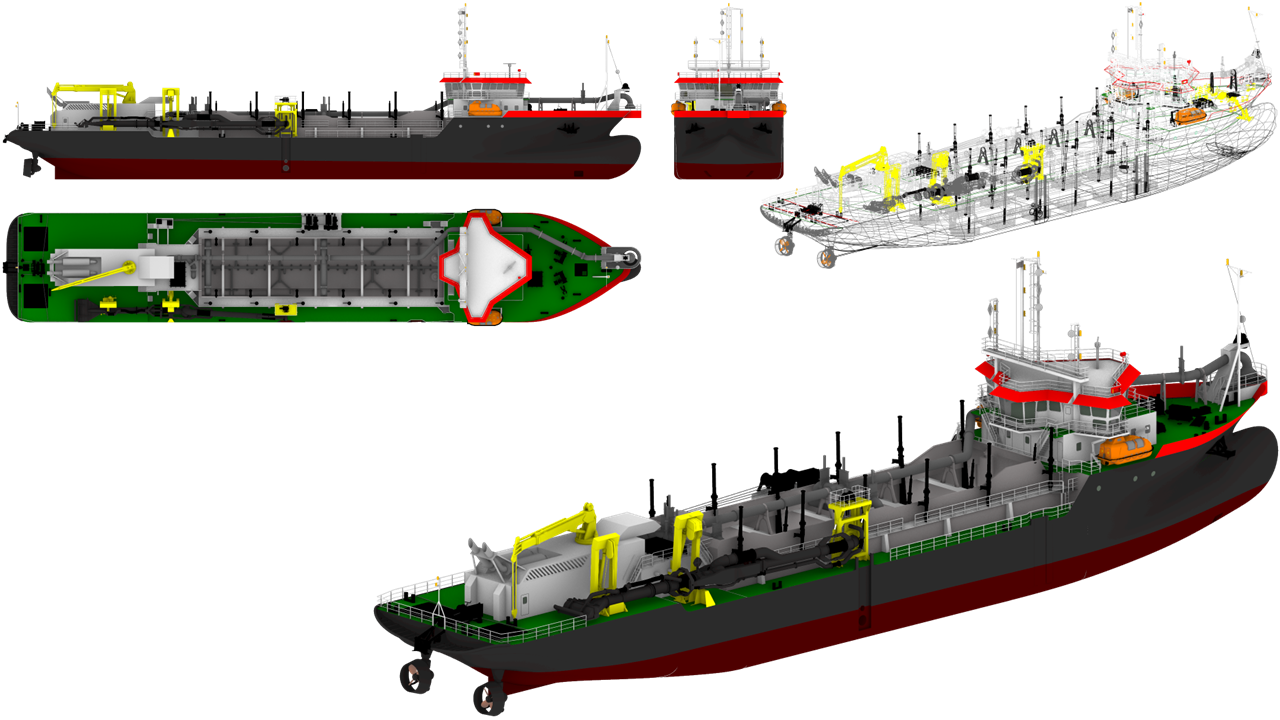

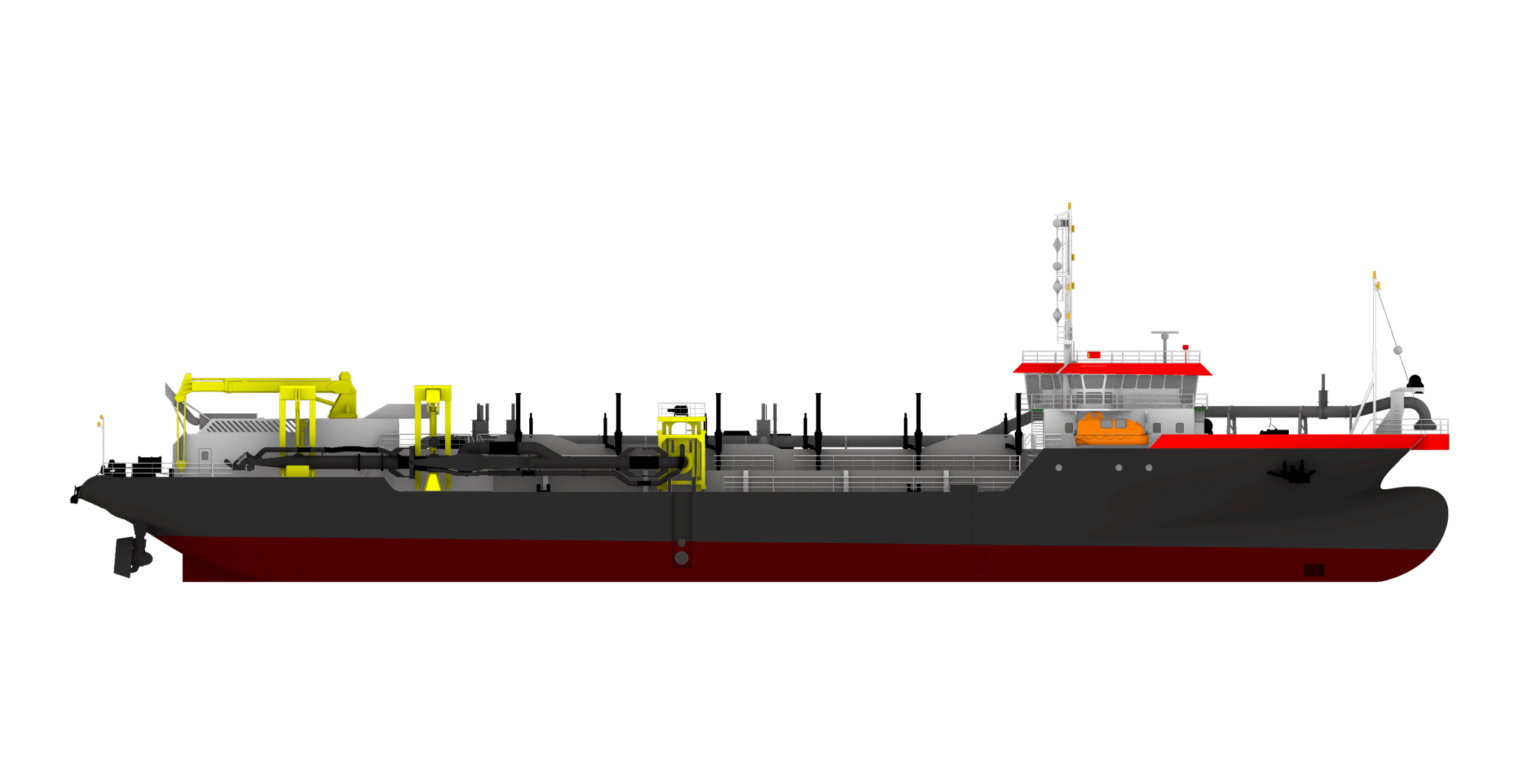

No. 8 [3200 m³ TSHD]

Principal Particulars

TRAILING SUCTION HOPPER DREDGER
Length overall: 94.35 m
Length between perpendiculars: 83.70 m
Depth: 6.30 m
Moulded breadth: 16.50 m
Hopper capacity: 3,200 m³
Speed: 14.00 knots
Dredging mark DR-50: 5.80 m
Loading capacity DR-50: 5120 tons

Concept View
Opis obrazka

No. 9 [5000 m³ TSHD]

Principal Particulars

TRAILING SUCTION HOPPER DREDGER
Length overall: 106.30 m
Length between perpendiculars: 94.50 m
Depth: 7.60 m
Moulded breadth: 21.0 m
Hopper capacity: 5000 m³
Speed: 12.10 knots
Dredging mark DR-50: 6.55 m
Loading capacity DR-50: 7200 tons

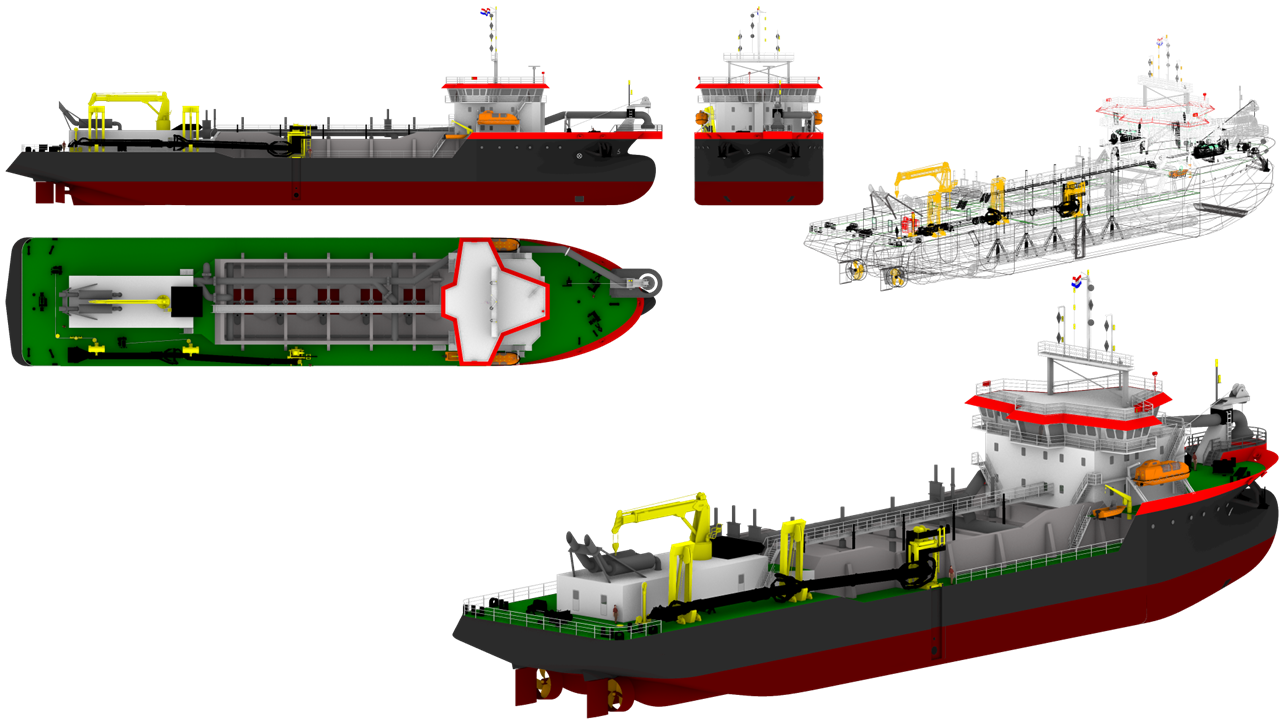

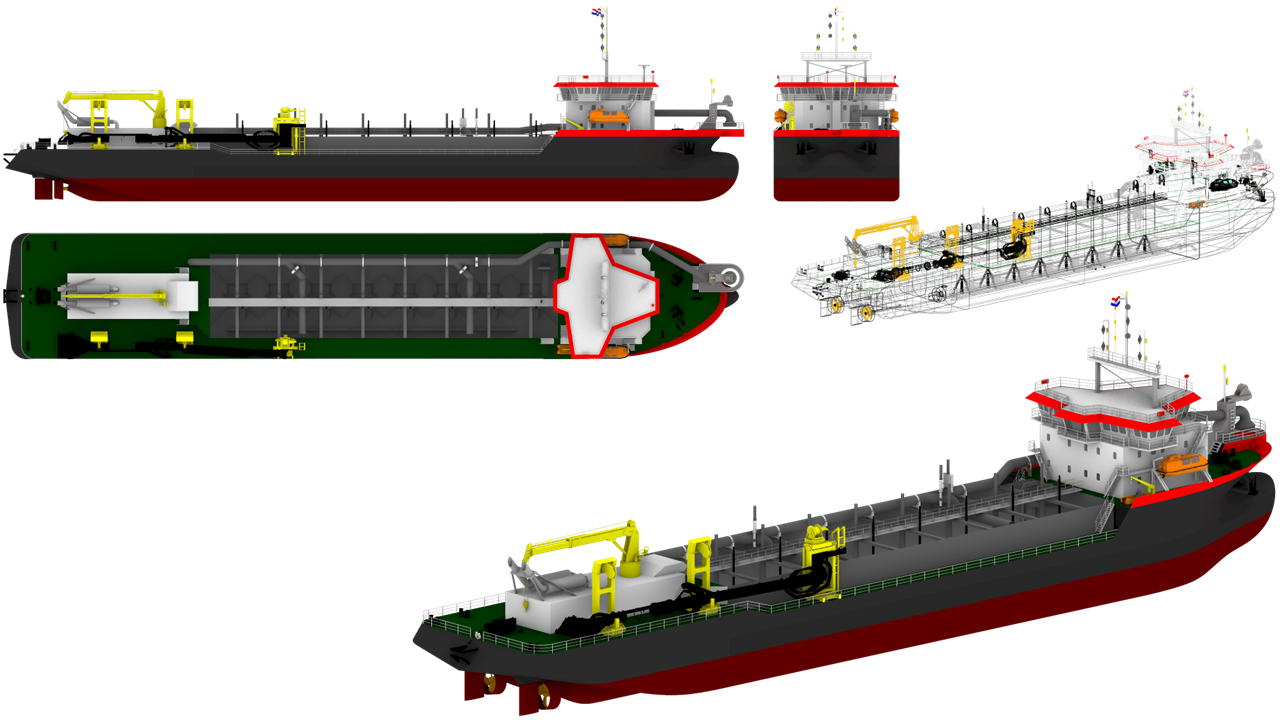

Concept View
Opis obrazka

No. 10 [7000 m³ TSHD]

Principal Particulars

TRAILING SUCTION HOPPER DREDGER
Length overall: 122.50 m
Length between perpendiculars: 114.00 m
Depth: 8.70 m
Moulded breadth: 21.0 m
Hopper capacity: 7000 m³
Speed: 13.00 knots
Dredging mark DR-50: 8.10 m
Loading capacity DR-50: 11200 tons

Concept View
Opis obrazka
